Symptom Troubleshooting - Power Window System
>>

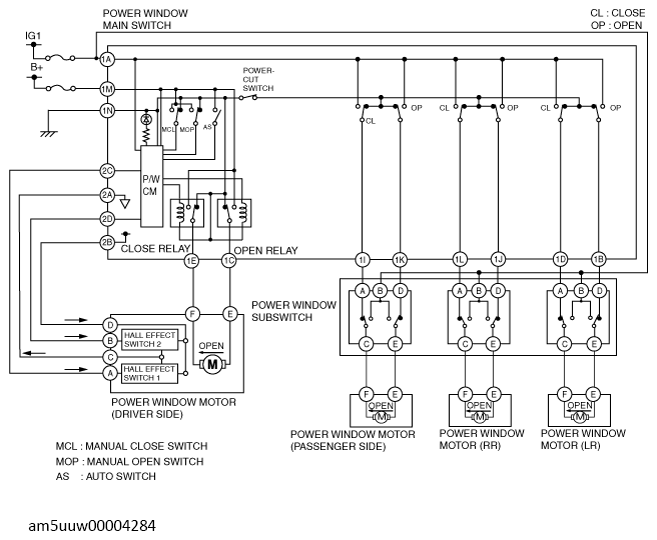

Power Window System Wiring Diagram
>>
Power Window Main Switch
Power Window Main Switch
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
