Sunroof Switch Inspection

  1. Disconnect the negative battery cable.
  2. Remove the map light. (See MAP LIGHT REMOVAL/INSTALLATION .)

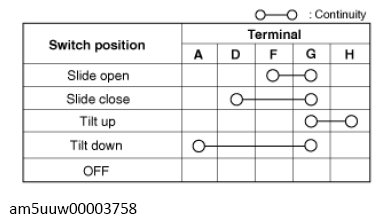

  3. Verify that the continuity between the sunroof switch terminals is as indicated in the table.

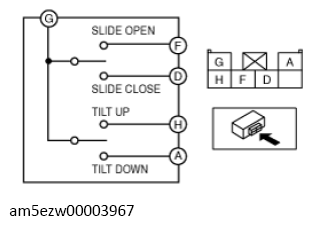

G13728275Courtesy of MAZDA MOTORS CORP.
G13728276Courtesy of MAZDA MOTORS CORP.
