Glass Panel Removal/Installation

  1. Fully close the glass panel.
  2. Fully open the sunshade.
  3. Disconnect the negative battery cable.

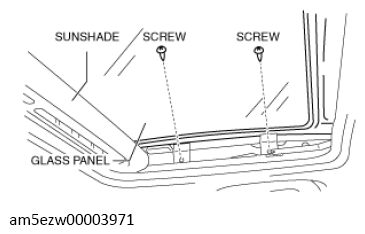

  4. Remove the screws, and then remove the glass panel.
    G13728269Courtesy of MAZDA MOTORS CORP.

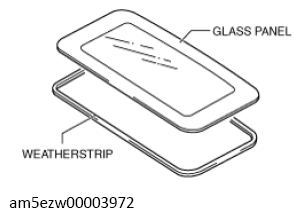

  5. Peel the weatherstrip off the glass panel.
    G13728270Courtesy of MAZDA MOTORS CORP.
  6. Install in the reverse order of removal.
  7. Adjust the glass panel. (See GLASS PANEL ADJUSTMENT .)
