Deflector Removal/Installation

  1. Fully open the glass panel.
  2. Disconnect the negative battery cable.

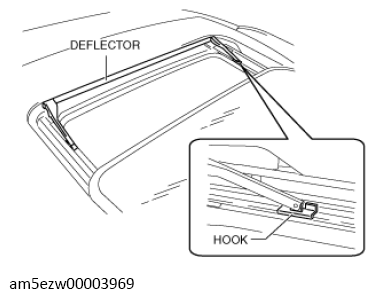

  3. Unhook and remove the deflector.
    G13728265Courtesy of MAZDA MOTORS CORP.
  4. Install in the reverse order of removal.
