Seat Warmer Switch Removal/Installation: Notes

  1. Switch the ignition OFF (LOCK).
  2. Remove the battery cover. (See BATTERY REMOVAL/INSTALLATION .)
  3. Disconnect the negative battery cable and wait 1 min or more.
  4. Disconnect the negative battery cable.
  5. Remove the center console box. (See CENTER CONSOLE REMOVAL/INSTALLATION .)

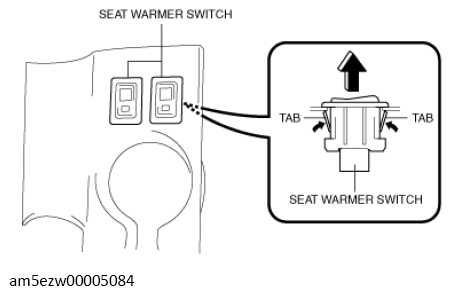

  6. Squeeze the tabs of seat warmer switch and pull it outward to remove it.
    G13728098Courtesy of MAZDA MOTORS CORP.
  7. Remove the seat warmer switch.
  8. Install in the reverse order of removal.
