Front Seat Side Cover Removal/Installation: Driver-side

  1. Switch the ignition OFF (LOCK).
  2. Remove the battery cover. (See BATTERY REMOVAL/INSTALLATION .)
  3. Disconnect the negative battery cable and wait 1 min or more.
  4. Remove the front seat. (See FRONT SEAT REMOVAL/INSTALLATION .)

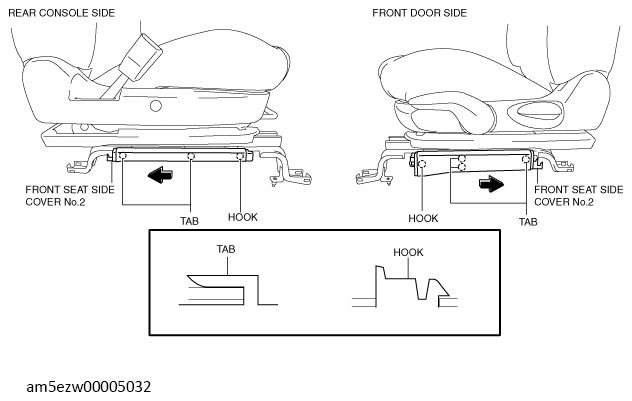

  5. Detach the tab and the hook, remove the front seat side cover No. 2.
    G13728065Courtesy of MAZDA MOTORS CORP.

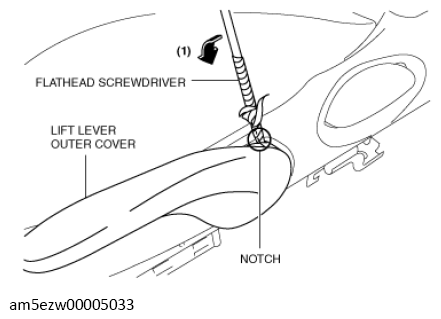

  6. Insert a tape-wrapped flathead screwdriver into notch indicated in the figure, and remove the lift lever outer cover while pushing in the direction of arrow (1).
    G13728066Courtesy of MAZDA MOTORS CORP.

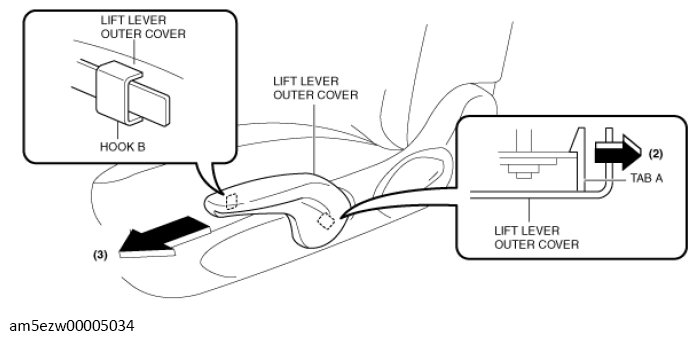

  7. Detach the tab A and the hook B while pulling the lift lever outer cover in the order of (2), (3) and remove it.
    G13728067Courtesy of MAZDA MOTORS CORP.

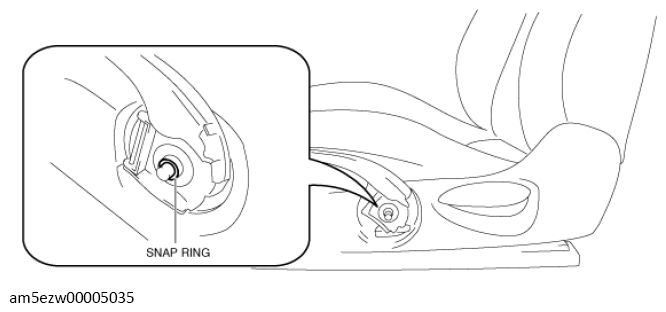

  8. Remove the snap ring.
    G13728068Courtesy of MAZDA MOTORS CORP.

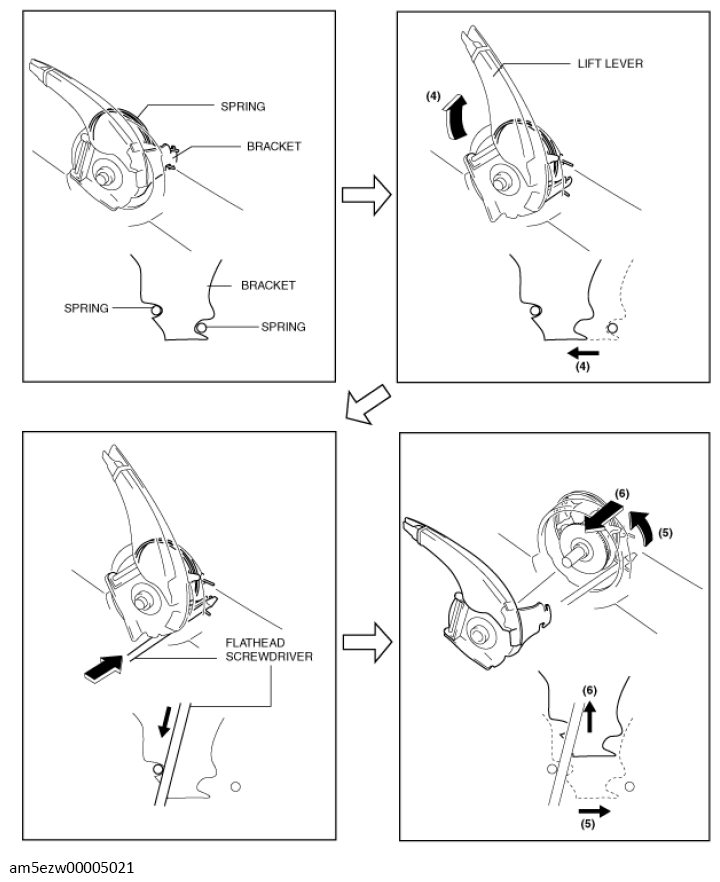

  9. Operate the lift lever in the direction of arrow (4) shown in the figure.
    G13728069Courtesy of MAZDA MOTORS CORP.
  10. Using a flathead screwdriver, hold the spring.
  11. Return the lift lever a bit to pull it up in the order of (5), (6) shown in the figure.

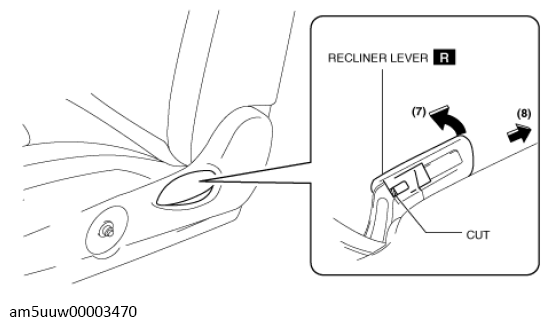

  12. After operating the recliner lever in the upward direction (7), cut the area indicated in the figure, then remove the recliner lever in the direction of arrow (8).
    G13728070Courtesy of MAZDA MOTORS CORP.
    CAUTION:
    • The seat back folds forward when the recliner lever is operated. Be careful when operating the recliner lever.

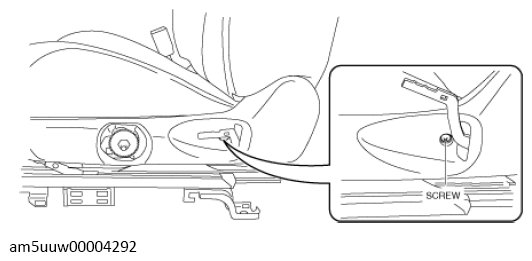

  13. Remove the screw.
    G13728071Courtesy of MAZDA MOTORS CORP.

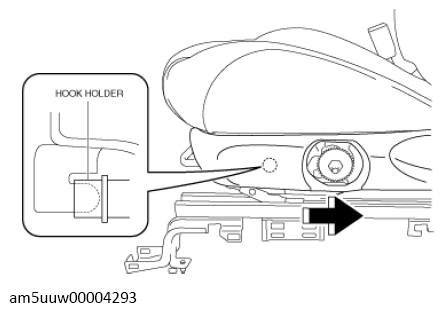

  14. Push the front seat side cover to the rear, remove the hook shown in the figure.
    G13728072Courtesy of MAZDA MOTORS CORP.

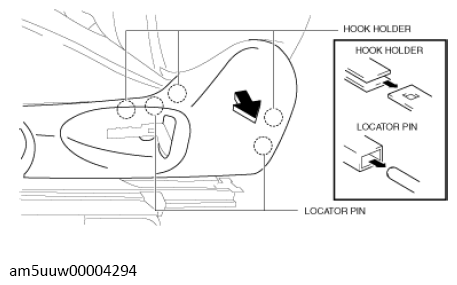

  15. Detach the pin and the hook while pulling rear part of the front seat side cover toward.
    G13728073Courtesy of MAZDA MOTORS CORP.

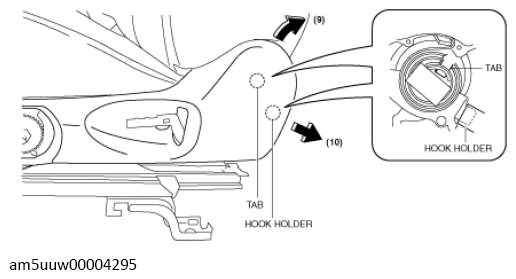

  16. Detach the tab and the hook while pulling in the direction of arrow (9), (10) shown in the figure.
    G13728074Courtesy of MAZDA MOTORS CORP.

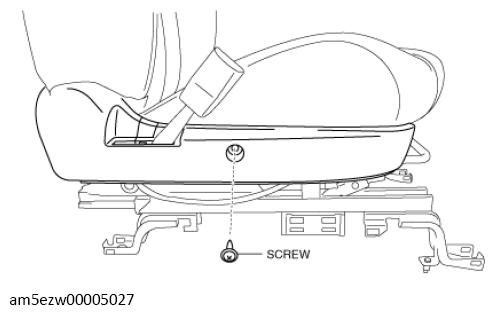

  17. Remove the screw.
    G13728075Courtesy of MAZDA MOTORS CORP.

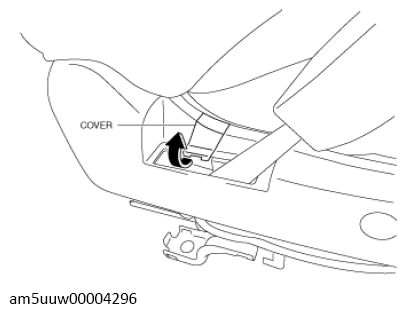

  18. Remove the cover.
    G13728076Courtesy of MAZDA MOTORS CORP.

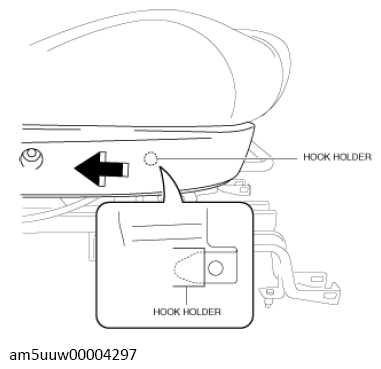

  19. Detach the hook while pulling in the direction of arrow.
    G13728077Courtesy of MAZDA MOTORS CORP.

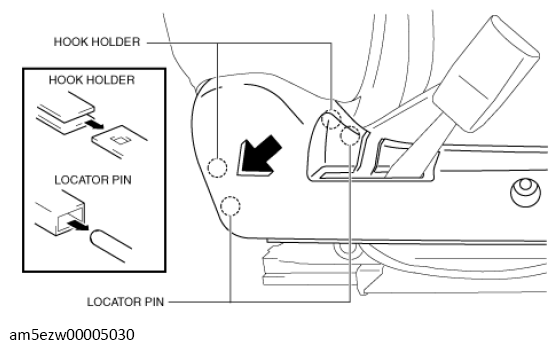

  20. Detach the pin and the hook while pulling rear part of the front seat side cover toward.
    G13728078Courtesy of MAZDA MOTORS CORP.

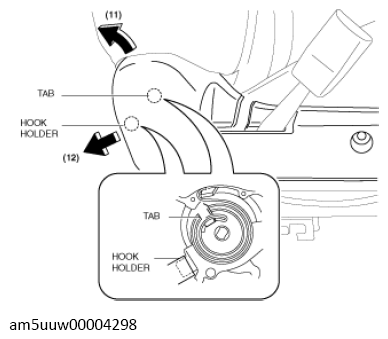

  21. Detach the tab and the hook while pulling in the direction of arrow (11), (12) shown in the figure.
    G13728079Courtesy of MAZDA MOTORS CORP.
  22. Install in the reverse order of removal.
