Outer Mirror Glass Installation

  1. Connect the heated outer mirror connector (vehicles with heated outer mirror).
    G13727961Courtesy of MAZDA MOTORS CORP.

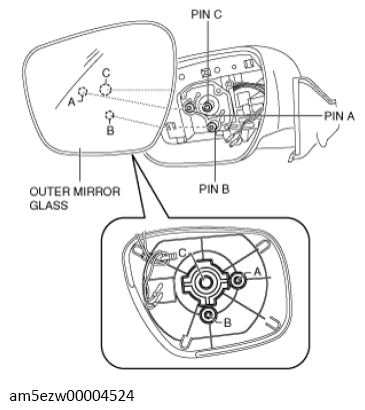

  2. Press part C on the outer mirror glass and install pin C.
    G13727962Courtesy of MAZDA MOTORS CORP.
  3. Press part A on the outer mirror glass and install pin A.
  4. Press part B on the outer mirror glass and install pins B.
  5. Connect the negative battery cable.
