Bolt H Installation Note

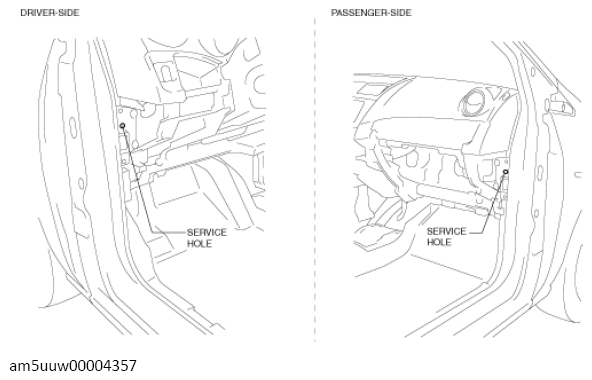

Fit the service hole of dashboard and hinge pillar inner shown in the figure.

Courtesy of MAZDA MOTORS CORP.

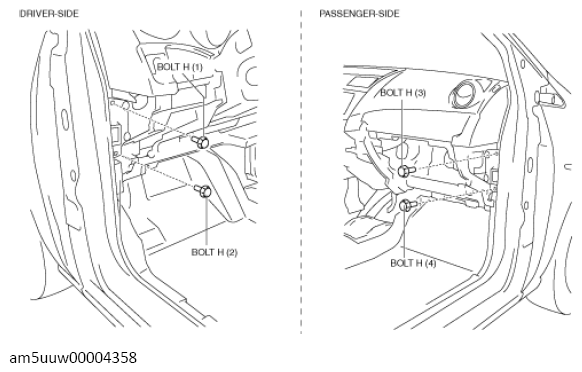

Partially tighten the bolts H in the order (1), (2), (3), (4) shown in the figure.

Fig 1: Dashboard Bolts H Tightening Sequence
Courtesy of MAZDA MOTORS CORP.

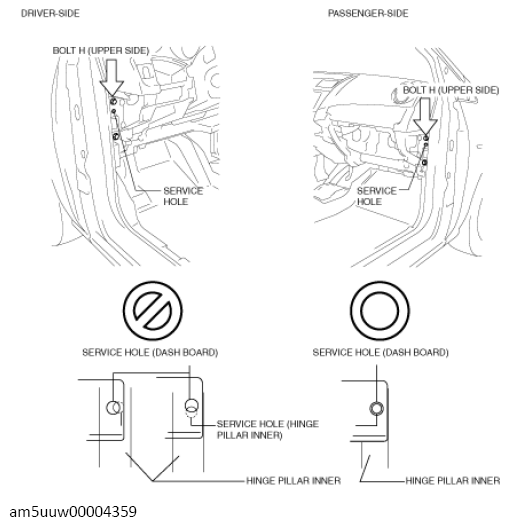

Reconfirms fit the service hole of dashboard and hinge pillar inner, then tighten the upper side bolt H.

Courtesy of MAZDA MOTORS CORP.
Adjust the height. (Passenger-side)
Tighten the all of bolts.
