Dashboard Disassembly/Assembly

  1. Disassemble in the order indicated in the table.

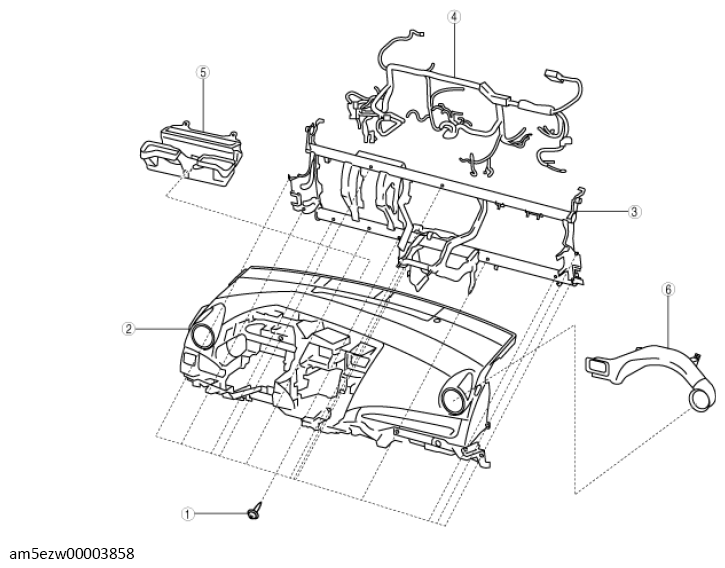

    G13728344Courtesy of MAZDA MOTORS CORP.
    PART DESCRIPTION

    1 Screw
    2 Dashboard
    3 Dashboard frame
    4 Wiring harness
    5 Center vent duct
    6 Driver-side vent duct
  2. Assemble in the reverse order of disassembly.
