Center Console Disassembly/Assembly

  1. Disassemble in the order indicated in the table.

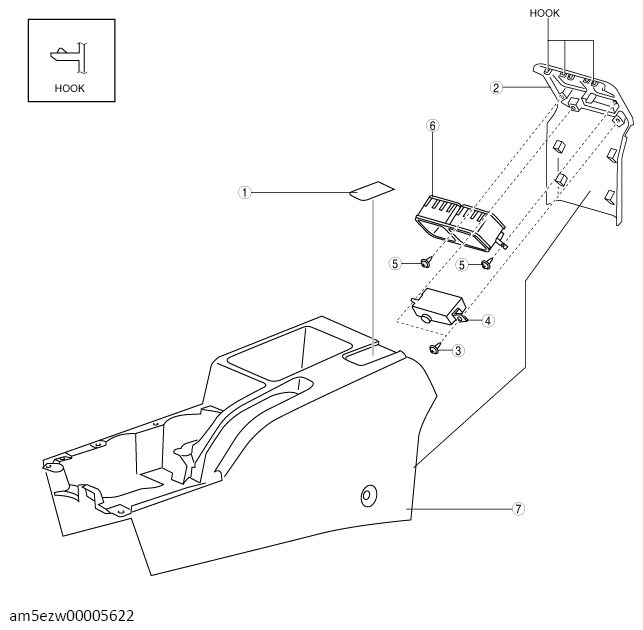

    G13728337Courtesy of MAZDA MOTORS CORP.
    PART DESCRIPTION

    1 Cover
    2 Panel console
    3 Screw A
    4 Rear fan switch
    5 Screw B
    6 Center louver
    7 Center console
  2. Assemble in the reverse order of disassembly.
