Keyless Receiver Removal/Installation

  1. Disconnect the negative battery cable.
  2. Remove the following parts:
    1. Rear scuff plate (LH) (See REAR SCUFF PLATE REMOVAL/INSTALLATION .)
    2. Sub-trunk (See SUB-TRUNK REMOVAL/INSTALLATION .)
    3. Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION .)
    4. Third-row seat (See THIRD-ROW SEAT REMOVAL/INSTALLATION .)
    5. Third-row seat belt lower anchor installation bolt (LH) (See THIRD-ROW SEAT BELT REMOVAL/INSTALLATION .)
    6. Trunk side trim (LH) (See TRUNK SIDE TRIM REMOVAL/INSTALLATION .)
  3. Remove the bolt.

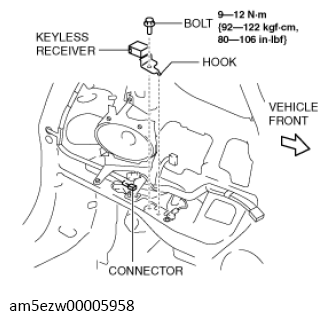

    Fig 1: Keyless Receiver, Hook And Bolts With Torque Specification
    G13728237Courtesy of MAZDA MOTORS CORP.
  4. Disconnect the connector.
  5. Remove the keyless receiver.
  6. Install in the reverse order of removal.
