Windshield Wiper Motor Assembly Note

  1. Connect the windshield wiper motor to the vehicle wiring harness connector, operate the windshield wipers, and then stop them at the auto-stop position.

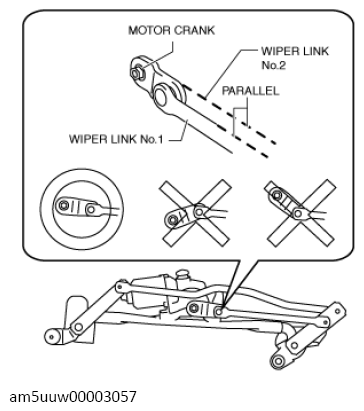

  2. Adjust the motor crank, wiper link No. 1, and wiper link No. 2 so that they are parallel as shown in the figure.
    G13728590Courtesy of MAZDA MOTORS CORP.
  3. Assemble the windshield wiper motor.
