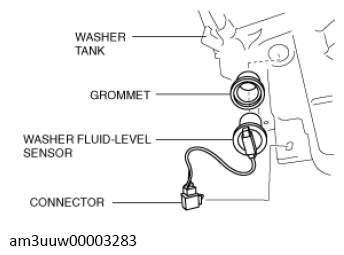

Washer Fluid-Level Sensor Removal/Installation
- Disconnect the negative battery cable.
- Remove the front bumper. (See FRONT BUMPER REMOVAL/INSTALLATION .)
- Remove the washer tank. (See WASHER TANK REMOVAL/INSTALLATION .)
- Remove the connector of the washer fluid-level sensor from the washer tank.
- Remove the washer fluid-level sensor.
- Remove the grommet.
- Install in the reverse order of removal.
