Steering Switch Removal/Installation

  1. Switch the ignition OFF (LOCK).
  2. Disconnect the negative battery cable and wait for 1 min or more.
  3. Remove the driver-side air bag module. (See DRIVER-SIDE AIR BAG MODULE REMOVAL/INSTALLATION [TWO-STEP DEPLOYMENT CONTROL SYSTEM] .)
  4. Remove the steering wheel. (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION .)

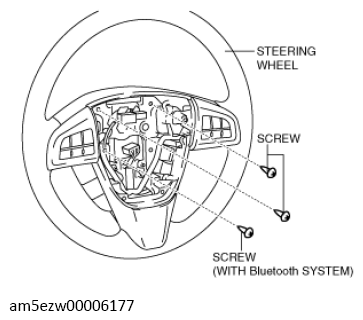

  5. Remove the screws.
    G13728653Courtesy of MAZDA MOTORS CORP.

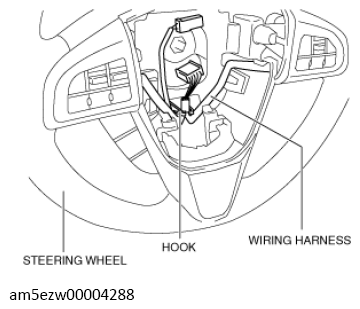

  6. Remove the wiring harness from the hook.
    G13728654Courtesy of MAZDA MOTORS CORP.
  7. Remove the steering cover tabs and pins from the steering wheel.
    G13728655Courtesy of MAZDA MOTORS CORP.

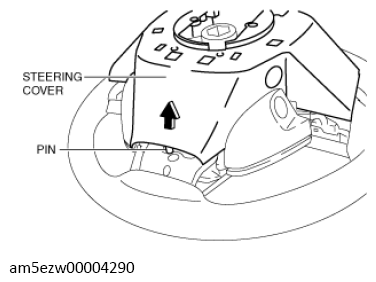

  8. Remove the steering cover.
    G13728656Courtesy of MAZDA MOTORS CORP.

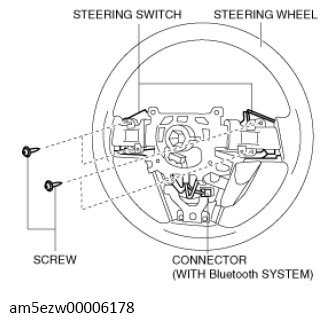

  9. Remove the screws.
    G13728657Courtesy of MAZDA MOTORS CORP.
  10. Disconnect the connector. (with Bluetooth system)

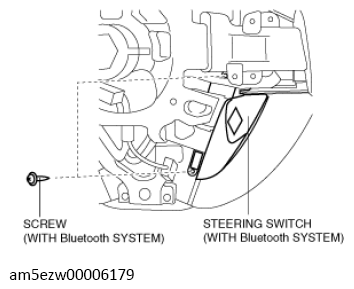

  11. Remove the screws. (With Bluetooth system)
    G13728658Courtesy of MAZDA MOTORS CORP.

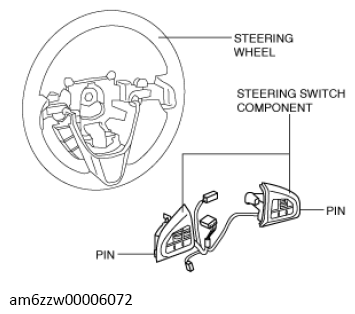

  12. Remove the steering switch pins from the steering wheel.
    G13728659Courtesy of MAZDA MOTORS CORP.
  13. Remove the steering switch component.

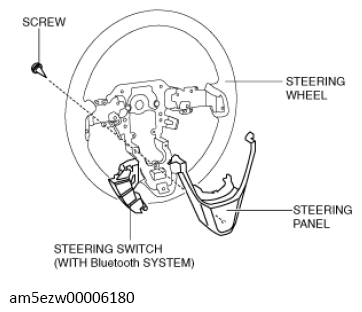

  14. Remove the screw.
    G13728660Courtesy of MAZDA MOTORS CORP.
  15. Remove the steering panel.
  16. Remove the steering switch. (With Bluetooth system)
  17. Install in the reverse order of removal.
