Map Light Bulb Removal/Installation

  1. Disconnect the negative battery cable.
  2. Remove the map light. (See MAP LIGHT REMOVAL/INSTALLATION .)

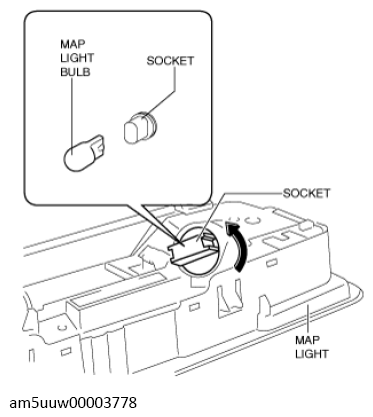

  3. Rotate the socket in the direction of the arrow shown in the figure to remove it.
    G13728510Courtesy of MAZDA MOTORS CORP.
  4. Remove the map light bulb from the socket.
  5. Install in the reverse order of removal.
