Socket Removal Note

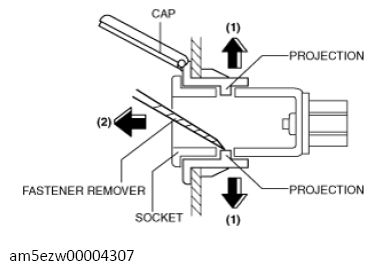

  1. Remove the socket in the direction of arrow (2) shown in the figure while opening the cap in the direction of arrow (1) using a tape-wrapped fastener remover.
G13728601Courtesy of MAZDA MOTORS CORP.
