5 GS, Automatic Trans
>>
Repair and Diagnosis
>>
Accessories & Equipment
>>
Communication Devices
>>
Body Control System
>>
Body Control Module (BCM) Inspection
>>
Door lock actuators 2-step unlocking (Reference)
Door lock actuators 2-step unlocking (Reference)
Courtesy of MAZDA MOTORS CORP.

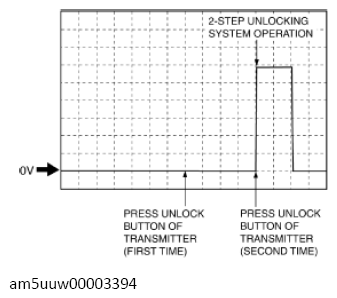

Terminal: 5K (+) ↔ body ground (-)
Oscilloscope setting: 2 V/DIV (Y), 200 ms/DIV (X), DC range
Measurement condition: Door lock actuators 2-step unlocking
