Engine Performance
>>
Engine Control Systems
>>
Pcm Inspection
>>
Without Using the M-MDS
>>
Inspection Using An Oscilloscope (Reference)
>>

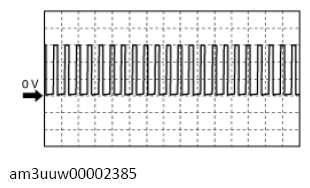

OCV control signal
OCV control signal
Courtesy of MAZDA MOTORS CORP.
PCM terminals
2E (+)-body ground (-)
Oscilloscope setting
5 V/DIV (Y), 10 ms/DIV (X), DC range
Vehicle condition
Racing
Courtesy of MAZDA MOTORS CORP.
