Keyless Entry Remote Transmitter Id Code Registration

NOTE:
  • Verify that the other keyless entry remote transmitter is not being operated around the servicing area while updating the ID code.
  • After completing the work, remove the key from the key cylinder and verify that all doors lock/unlock normally by operating the keyless entry remote transmitter.

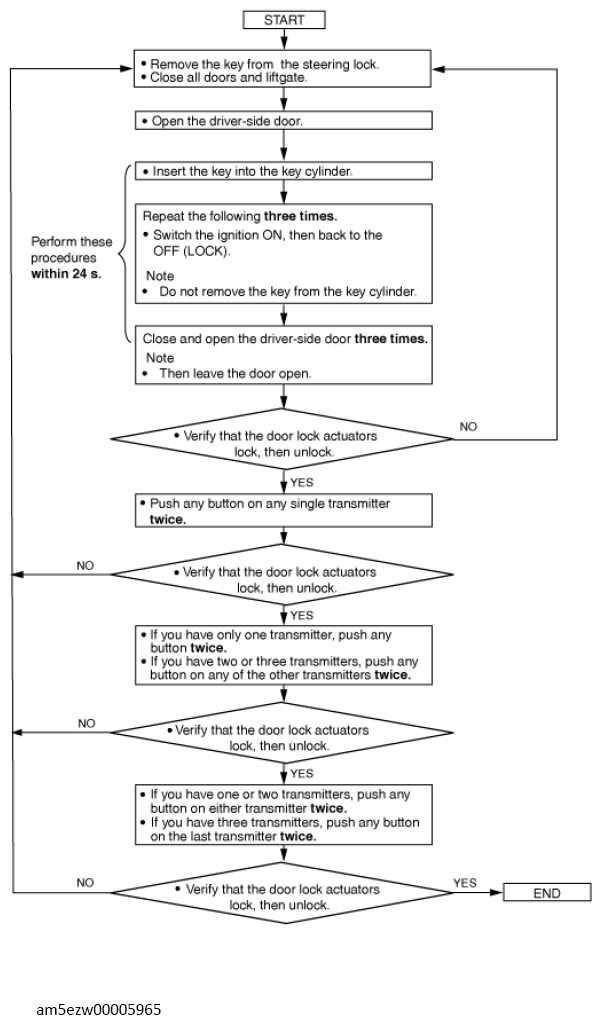

G13728235Courtesy of MAZDA MOTORS CORP.
