Transaxle Case And Clutch Housing Disassembly: Notes

  1. Disassemble the transaxle case component and clutch housing component in the order shown in the figure.

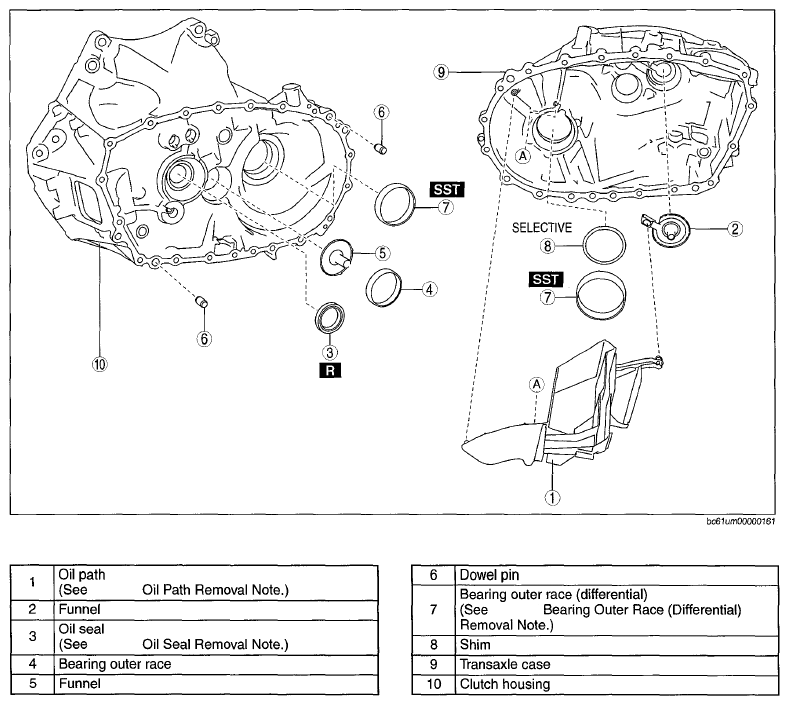

    Fig 1: Identifying Transaxle Case Component And Clutch Housing Component Disassembling Order
    G08347816
