Oil seal assembly note

  1. Assemble a new oil seal to the clutch housing using the SSTs.

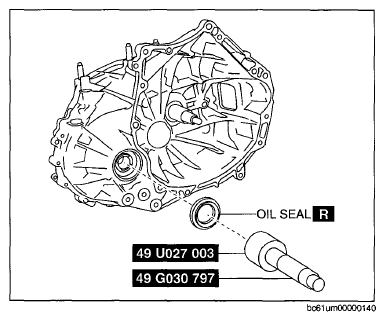

    Fig 1: Assembling Oil Seal To Clutch Housing Using SST
    G08347968
  2. Assemble a new oil seal to the transaxle case using the SSTs.

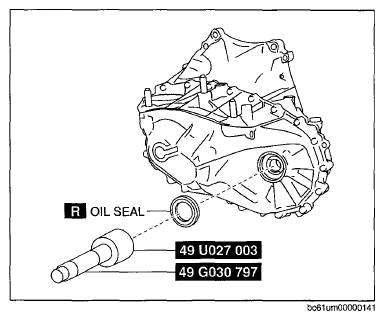

    Fig 2: Assembling Oil Seal To Transaxle Case Using SSTs
    G08347969
