Reverse idler gear component assembly note

  1. Pull the reverse idler gear shaft and position it to the location shown in the figure.
  2. Engage each gear while aligning the shim notch with the ball bearing of the primary shaft component.
  3. Push the reverse idler gear shaft and assemble the reverse idler gear component.

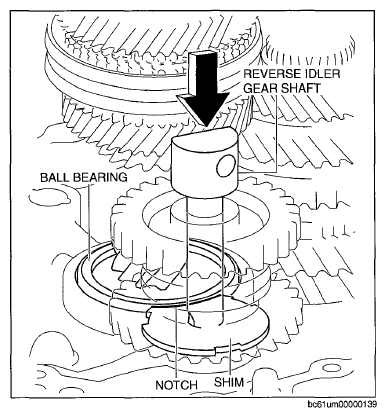

    Fig 1: Pushing Reverse Idler Gear Shaft And Assemble Reverse Idler Gear Component
    G08347958
