Secondary 4th Gear Assembly Note

  1. Set the secondary shaft component and secondary 4th gear in a press as shown in the figure.
  2. Assemble the secondary 4th gear using the press.

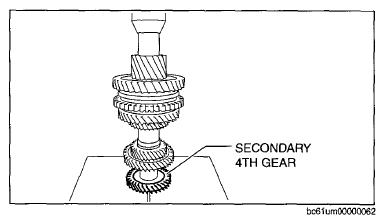

    Fig 1: Assembling Secondary 4th Gear Using Press
    G08347898
