Secondary 2nd Gear Assembly Note

Verify that the ends of the inner cone ring, middle cone ring, and synchronizer ring are arranged in a flat plane.

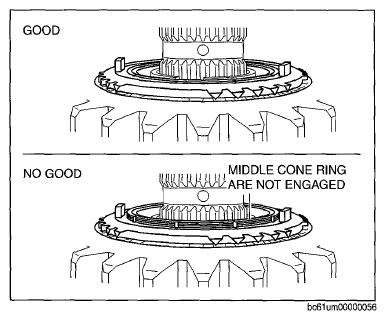

Fig 1: Identifying Proper And Improper Inner Cone Ring, Middle Cone Ring And Synchronizer Ring Arranged Position
Assemble the secondary 2nd gear so that the groove of the secondary 2nd gear and middle cone ring projection are engaged as shown in the figure.

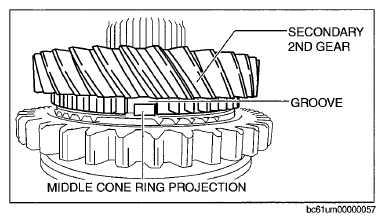

Fig 2: Identifying Groove Of Secondary 2nd Gear And Middle Cone Ring Projection
