Gear Sleeve Assembly Note

  1. Assemble the gear sleeve so that the gear sleeve projection and clutch hub groove are engaged as shown in the figure.

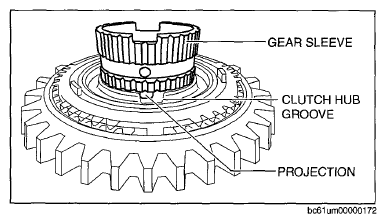

    Fig 1: Identifying Gear Sleeve, Gear Sleeve Projection And Clutch Hub Groove
    G08347884
