Clutch Hub Sleeve Assembly Note

  1. Align the positioning groove of the clutch hub sleeve so that it is lined up with the center of the key groove of the clutch hub, and assemble the clutch hub sleeve.

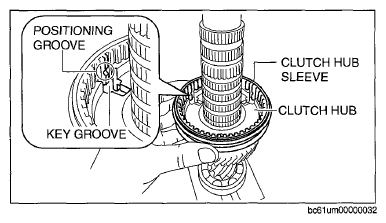

    Fig 1: Aligning Positioning Groove Of Clutch Hub Sleeve
    G08347860
