Rear Oil Seal Replacement: Notes

  1. Remove the transaxle. (See MANUAL TRANSAXLE REMOVAL/INSTALLATION .) (See AUTOMATIC TRANSAXLE REMOVAL/INSTALLATION .)
  2. Remove the flywheel (MTX) or the drive plate (ATX). (See CLUTCH UNIT REMOVAL/INSTALLATION .) (See DRIVE PLATE REMOVAL/INSTALLATION .)
  3. Remove in the order indicated in the table.
  4. Install in the reverse order of removal.

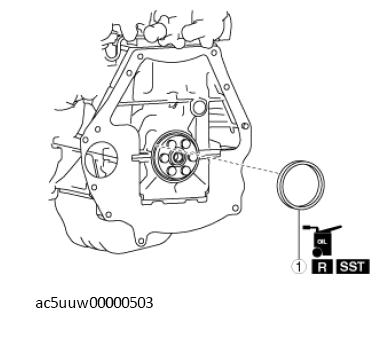

Fig 1: Removing Rear Oil Seal Parts
G11550161Courtesy of MAZDA MOTORS CORP.
COMPONENT DESCRIPTION

1 Rear oil seal
(See Rear Oil Seal Removal Note .)
(See Rear Oil Seal Installation Note .)
