Snap Ring (1) Installation Note

  1. When replacing the pressure plate, idler pulley, stator (stator and thermal protector), or idler body, replace the snap ring (1).

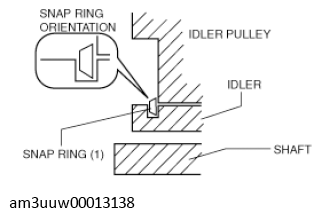

Fig 1: Replacing Snap Ring (1)
G11550142Courtesy of MAZDA MOTORS CORP.
