Idler Pulley Installation Note

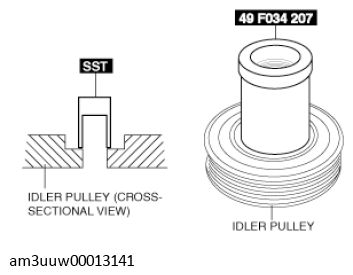

  1. Set the SST (49 F034 207) as shown in the figure.
    Fig 1: Installing SST
    G11550145Courtesy of MAZDA MOTORS CORP.

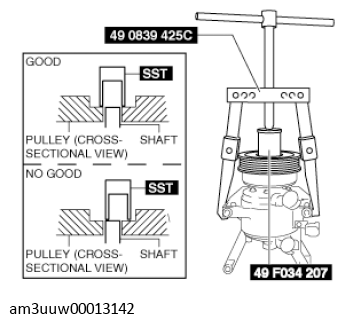

  2. Install the idler pulley using the SST (49 0839 425C, 49 F034 207).
Fig 2: Installing Idler Pulley Using SST
G11550146Courtesy of MAZDA MOTORS CORP.
CAUTION:
  • If the SSTs are not properly positioned when the idler pulley is press-fit, the idler axle will interfere with the SSTs, possibly damaging component parts. Verify that the SST and axle are properly positioned and perform the press-fit procedure very carefully.
