Control Valve Body Removal/Installation

On-Vehicle Removal

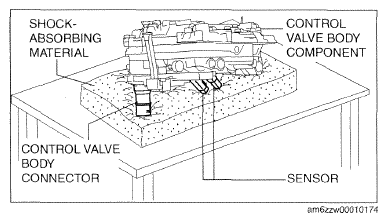

Fig 1: Cautions For Placing Control Valve Body Connector Side Pointed Downward Could Damage

Courtesy of MAZDA MOTORS CORP.

1. Select the selector lever to P position.
2. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
3. Remove the front under cover No. 2. (See FRONT UNDER COVER No. 2 REMOVAL/INSTALLATION .)
4. Clean the transaxle exterior throughout with a steam cleaner or cleaning solvents.
5. Remove the air cleaner component. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION .)
6. Disconnect the control valve body connector.
   Fig 2: Control Valve Body Connector

   Courtesy of MAZDA MOTORS CORP.
   CAUTION:

   • Make sure that your hand does not touch the terminal as the connector terminal could be damaged.
   • Water or foreign objects entering the connector can cause a poor connection or corrosion. Be sure not to drop water or foreign objects on the connector when disconnecting it.
7. Remove the hose clamp.
   Fig 3: Removing Hose Clamp

   Courtesy of MAZDA MOTORS CORP.
8. Drain the ATF. (See AUTOMATIC TRANSAXLE FLUID (ATF) REPLACEMENT .)
9. Remove the oil pan.
10. Remove the oil strainer.

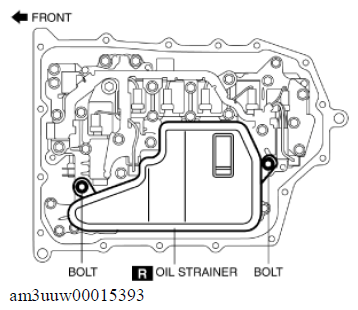

    Fig 4: Oil Strainer And Bolts

    Courtesy of MAZDA MOTORS CORP.
11. Remove the oil strainer O-rings.
    Fig 5: Removing Oil Strainer O-Rings

    Courtesy of MAZDA MOTORS CORP.
12. Remove the control valve body.
    CAUTION:

    • Remove the control valve body directly from underneath so that force is not applied to the control valve body connector in the lateral direction.
    Fig 6: Control Valve Body Bolts

    Courtesy of MAZDA MOTORS CORP.
13. Remove the oil seal (control valve body). (See OIL SEAL (CONTROL VALVE BODY) REPLACEMENT .)
14. Remove the gasket from the transaxle case.

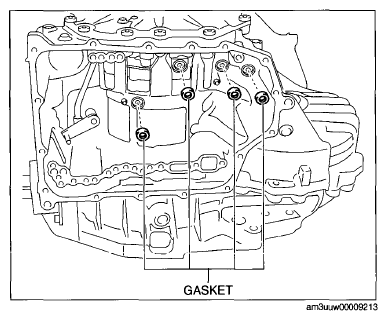

    Fig 7: Transaxle Case Gaskets

    Courtesy of MAZDA MOTORS CORP.

On-Vehicle Installation

1. Install the gasket to the transaxle case.

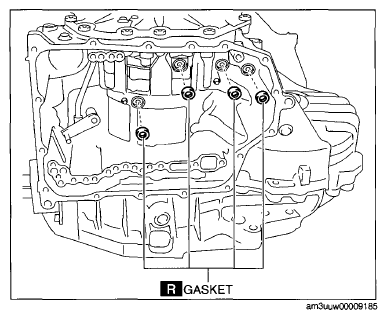

   Fig 8: Installing Gasket To Transaxle Case

   Courtesy of MAZDA MOTORS CORP.
2. Install the dowel pin to the control valve body.
   NOTE:

   • Oil with a color different from the genuine ATF may be adhered to a new control valve body.
   • If the dowel pin remains in the transaxle case, remove the dowel pin from the transaxle case and install the dowel pin to the control valve body.

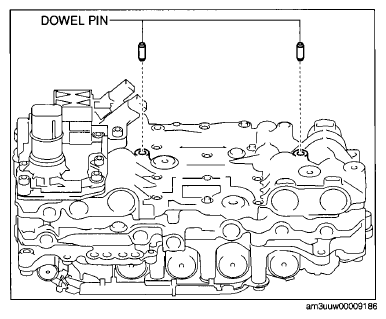

   Fig 9: Removing Dowel Pin From Transaxle Case

   Courtesy of MAZDA MOTORS CORP.
3. Install the control valve body so that the parking assist lever component is engaged in the gap between the two surfaces of the spool part of the manual valve.
   CAUTION:

   • Install the control valve body so that the turbine/input shaft speed sensor, output shaft speed sensor, and control valve body connector do not contact the transaxle case.

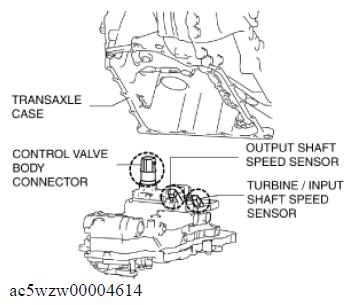

   Fig 10: Control Valve Body Connector

   Courtesy of MAZDA MOTORS CORP.

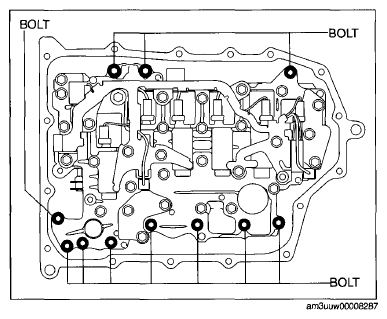

   Fig 11: Transaxle Case And Bolts

   Courtesy of MAZDA MOTORS CORP.

   Tightening torque

   9-10 Nm {92-101 kgf cm, 80-88 in lbf}

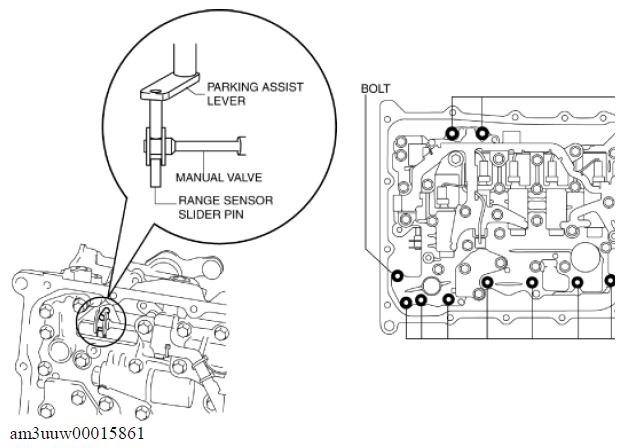

4. Move the manual valve in both directions of the arrow and verify that the manual valve is correctly connected to the parking assist lever component and the slider pin for the range sensor.
   Fig 12: Moving Manual Valve In Both Directions Of Arrow

   Courtesy of MAZDA MOTORS CORP.
   NOTE:

   • If the manual valve only moves in the gap between the parking assist lever component surface and the manual valve surface, the manual valve and the parking assist lever component are correctly engaged.
5. Install the new oil strainer O-rings.
   Fig 13: Removing Oil Strainer O-Rings

   Courtesy of MAZDA MOTORS CORP.
6. Install the new oil strainer.
   Fig 14: Oil Strainer And Bolts

   Courtesy of MAZDA MOTORS CORP.

   Tightening torque

   9-10 Nm {92-101 kgfcm, 80-88 inlbf}

7. Apply a light coat of silicone sealant (TB1217E or equivalent) to the contact surfaces of the oil pan and transaxle case.
   Fig 15: Applying Silicone Sealant To Contact Surfaces Of Oil Pan

   Courtesy of MAZDA MOTORS CORP.
   CAUTION:

   • Clean any remaining silicone sealant on the contact surface of the transaxle case and oil pan, and degrease the sealant area. Otherwise, oil could leak.
8. Install the oil pan with new bolts before the applied sealant starts to harden.
   Fig 16: Installing Oil Pan With Bolts

   Courtesy of MAZDA MOTORS CORP.

   Tightening torque

   8-10 Nm {82-101 kgfcm, 71-88 inlbf}

9. Install the oil seal (control valve body). (See OIL SEAL (CONTROL VALVE BODY) REPLACEMENT .)
10. Install a new hose clamp to the position shown in the figure.
    CAUTION:

    • If the hose clamp is reused it could cause ATF leakage, therefore use a new hose clamp.
    • Install the hose clamp tab to within the range shown in the figure.

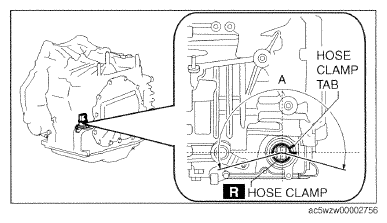

    Fig 17: Installing Hose Clamp Tab To Within Range

    Courtesy of MAZDA MOTORS CORP.

    A: 210°

    • Install the hose clamp so that it does not interfere with the top and bottom flanges of the oil seal to maintain the waterproofing integrity.

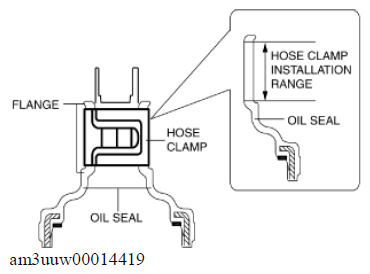

    Fig 18: Checking Hose Clamp Installation Range Measurement

    Courtesy of MAZDA MOTORS CORP.
11. Connect the control valve body connector.
    Fig 19: Control Valve Body Connector

    Courtesy of MAZDA MOTORS CORP.
    CAUTION:

    • Make sure that your hand does not touch the terminal as the connector terminal could be damaged.
    • Verify that there is no fluid or foreign matter adhering to the connector before connecting the connector.
    • Insert the connector straight as the connector terminal could be damaged.
    • Rotate the connector lever until a click is heard.
12. Add the ATF. (See AUTOMATIC TRANSAXLE FLUID (ATF) REPLACEMENT .)
13. Install the air cleaner component. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION .)
14. Connect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
15. Perform the «TCM configuration» (Control valve body Replacement). (See TCM CONFIGURATION .)
    CAUTION:

    • The transaxle does not operate normally if the TCM configuration is not performed. When the control valve body is replaced, always perform the TCM configuration to enable the transaxle to operate normally.
    • When the control valve body is replaced, a U-code DTC is output. After completing the TCM configuration, clear the U-code DTC and verify that no DTCs are output.
16. Delete the U code and verify that no DTC is output. (See ON-BOARD DIAGNOSTIC SYSTEM DTC INSPECTION [TCM (FW6A-EL)] .)
17. Perform the «Initial Learning» (Control valve body Replacement). (See INITIAL LEARNING .)
18. Perform the «Mechanical System Test». (See MECHANICAL SYSTEM TEST .)
19. Install the front under cover No. 2. (See FRONT UNDER COVER No. 2 REMOVAL/INSTALLATION .)
20. Perform the «Road Test». (See ROAD TEST .)
