No. 4 engine mount bracket removal note: Notes

CAUTION:
  • A slot has been adopted for the No. 4 engine mount bracket installation hole. If the No. 4 engine mount bracket is deviated from the original position when installing the No. 4 engine mount, engine noise or vibration could increase. When removing the No. 4 engine mount, place alignment marks on the No. 4 engine mount bracket so that they can be assembled to the same positions as before removal.

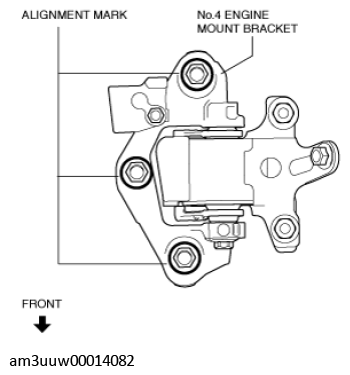

  1. Place alignment marks on the locations shown in the figure so that they can be assembled to the same positions as before removal.
    Fig 1: Placing Alignment Marks On Engine Mount Bracket And Bolts
    G11542523Courtesy of MAZDA MOTORS CORP.
    NOTE:
    • Paint so that the outline of the nut is framed on the bracket side.
  2. Remove the No. 4 engine mount bracket.
