EPS CM Removal Note

  1. Disconnect the torque sensor connector (EPS CM side).

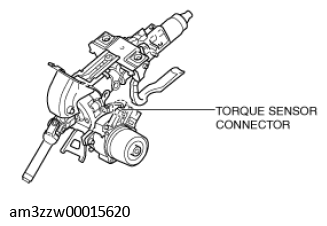

    Fig 1: Torque Sensor Connector (EPS CM Side)
    G11539485Courtesy of MAZDA MOTORS CORP.
  2. Remove the EPS CM.
    WARNING:
    • Be careful not to let liquid or foreign material penetrate the EPS CM or the steering column because the motor area of the EPS CM may be damaged by liquid or foreign material.
