Rear Buckle Removal/Installation: Notes

  1. Remove the rear seat cushion. (See REAR SEAT CUSHION REMOVAL/INSTALLATION .)
  2. Remove the bolts.

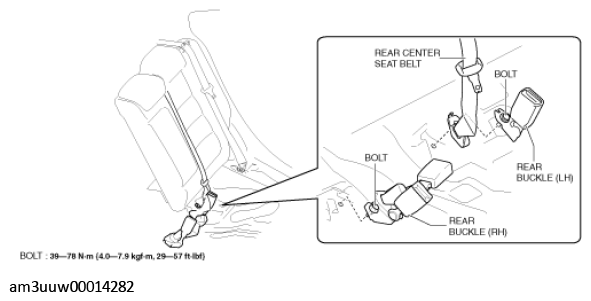

    Fig 1: Removing Rear Buckle
    G11539414Courtesy of MAZDA MOTORS CORP.
  3. Remove the rear buckle (RH) and rear buckle (LH).
  4. Install in the reverse order of removal. (See REAR BUCKLE INSTALLATION NOTE .)
