Windshield Washer Nozzle Adjustment

WARNING: This page is about a different car, the 2014 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION:

If the nozzle is adjusted by inserting a stick-like object into the nozzle, it could deform the injection nozzle and the washer fluid may not spray normally. When adjusting the nozzle, do not insert objects into the injection nozzle.

Insert a tape-wrapped precision flathead screwdriver into the adjustment hole of the windshield washer nozzle and adjust it to the area where washer fluid is sprayed as shown in the figure.

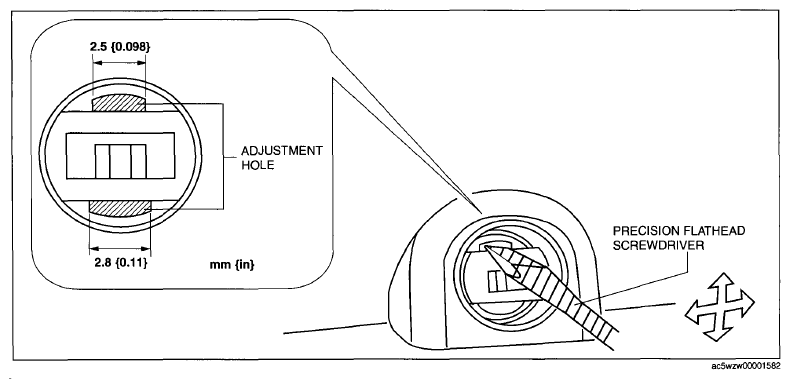

Fig 1: Inserting Tape-Wrapped Precision Flathead Screwdriver Into Adjustment Hole Of Windshield Washer Nozzle
Courtesy of MAZDA MOTORS CORP.

Fig 2: Identifying Windshield Washer Nozzle Dimensions
Courtesy of MAZDA MOTORS CORP.
