Glass Panel Adjustment

WARNING: This page is about a different car, the 2014 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

Fully close the glass panel.
Measure the gap and height between the glass panel and body.
Loosen the installation screws and adjust the glass panel.

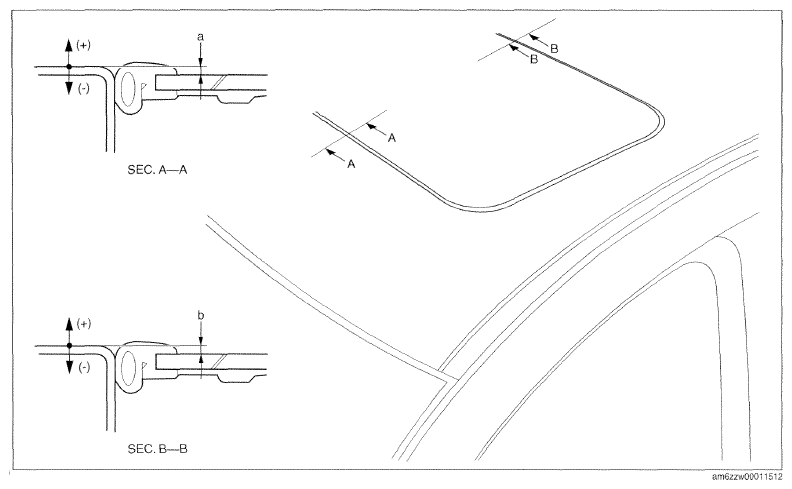

Fig 1: Identifying Glass Panel Adjustment Dimension
Courtesy of MAZDA MOTORS CORP.

Standard clearance
1. -2.4-0.2 mm {-0.094-0.007 in}
2. -2.3-0.3 mm {-0.09-0.01 in}
Tighten the installation screws. (See GLASS PANEL REMOVAL/INSTALLATION .)
Insert a plastic card between the weatherstrip and the body of the vehicle. Verify that the sunroof is shut tightly (there is resistance when the plastic card is moved).

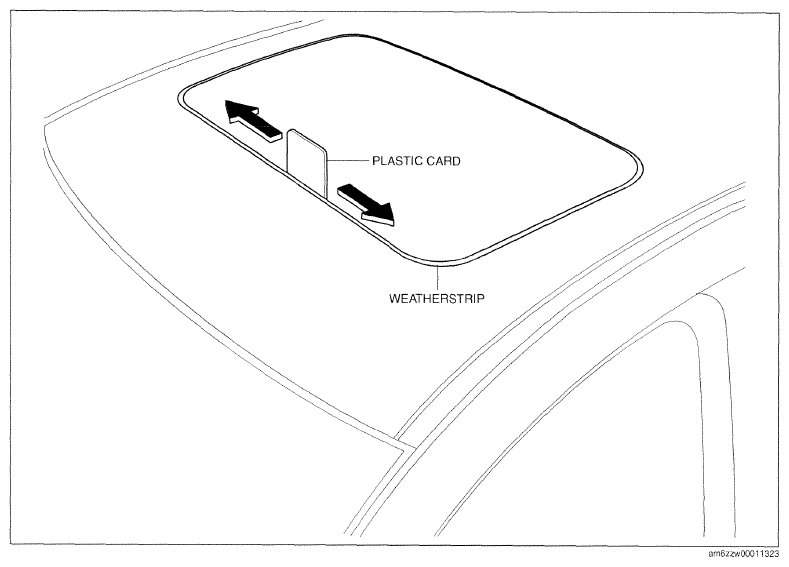

Fig 2: Inserting Plastic Card Between Weatherstrip And Body
Courtesy of MAZDA MOTORS CORP.
- If the sunroof is not shut tightly, readjust by performing Steps 3 and 4.
