Active Air Shutter Cover Removal/Installation

WARNING: This page is about a different car, the 2014 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
  2. Remove the front bumper. (See FRONT BUMPER REMOVAL/INSTALLATION .)
  3. Remove the active air shutter. (See ACTIVE AIR SHUTTER REMOVAL/INSTALLATION .)
  4. Remove the screws.
  5. While pressing the frame tabs in the direction of arrow (1) shown in the figure, pull the active air shutter cover in the direction of arrow (2) to detach the active air shutter cover from the frame tabs.

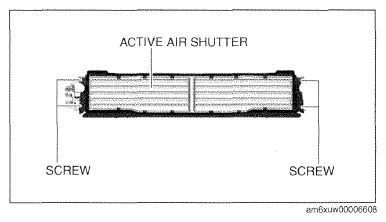

    Fig 1: Active Air Shutter And Mounting Screw
    G09788608Courtesy of MAZDA MOTORS CORP.

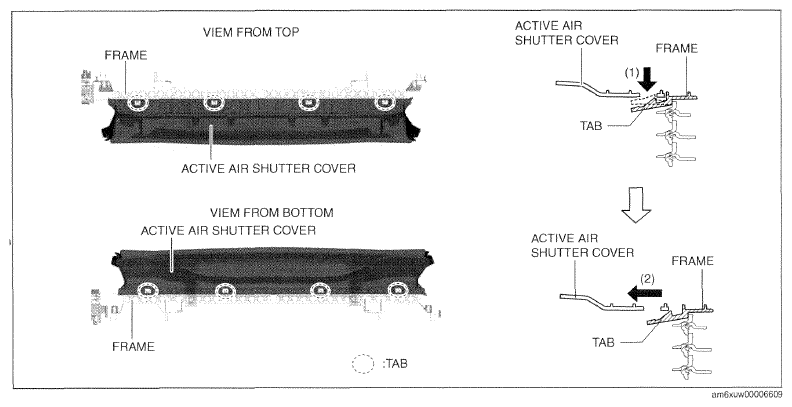

    Fig 2: Active Air Shutter Cover
    G09788609Courtesy of MAZDA MOTORS CORP.
  6. Detach all tabs and remove the active air shutter cover from the frame.
  7. Install in the reverse order of removal.
