Fuse Box

WARNING: This page is about a different car, the 2014 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

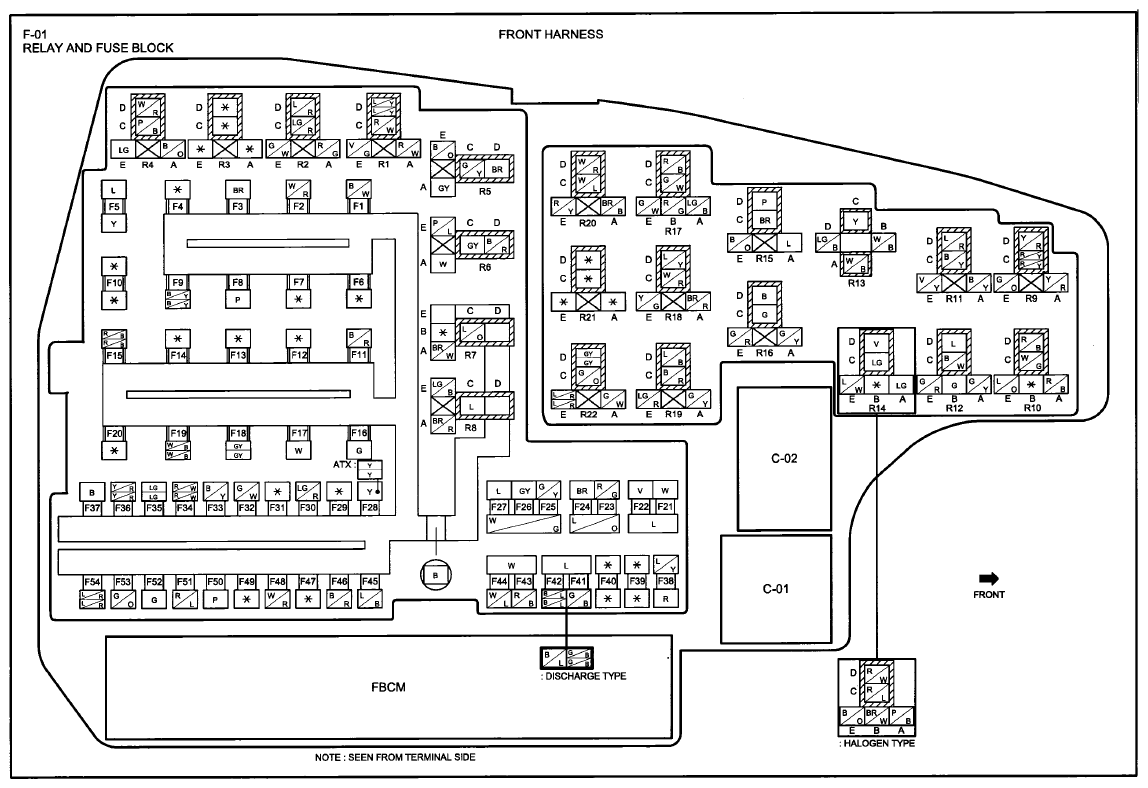

Fig 1: Fuse Box Connector List (00F-1A)

Courtesy of MAZDA MOTORS CORP.

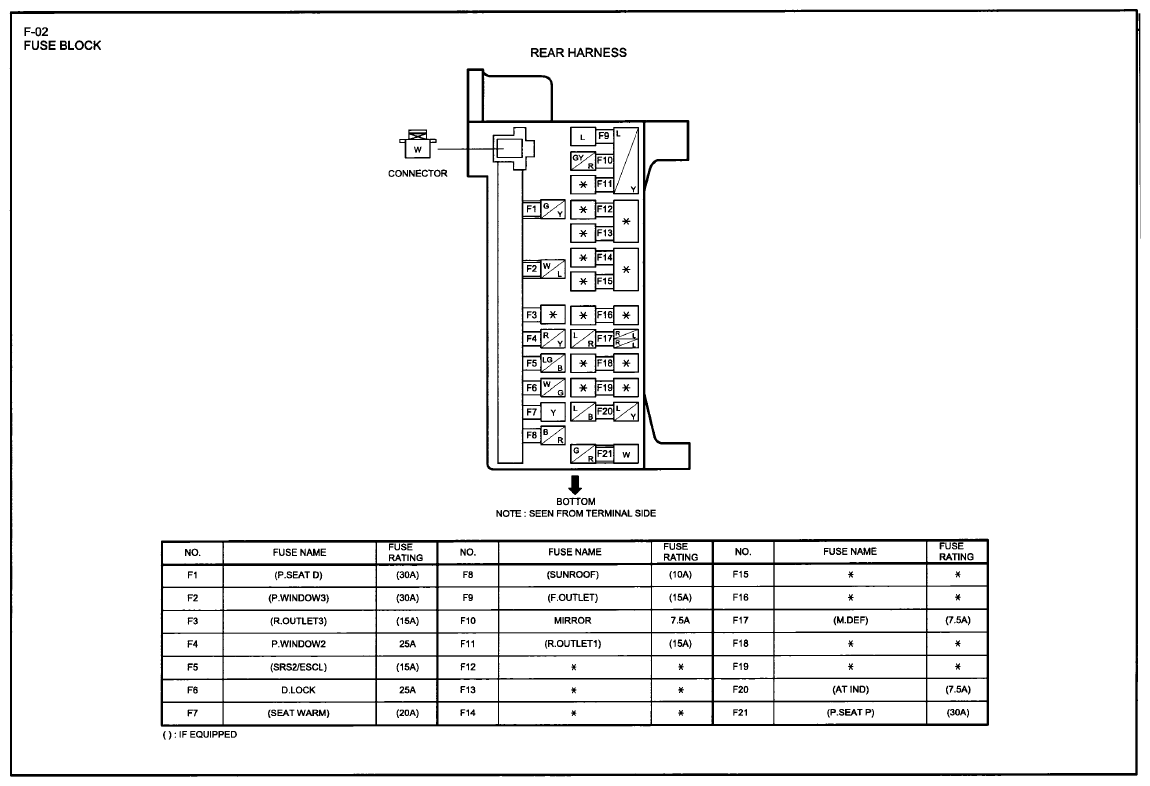

Fig 2: Fuse Box Connector List (00F-1B)

Courtesy of MAZDA MOTORS CORP.

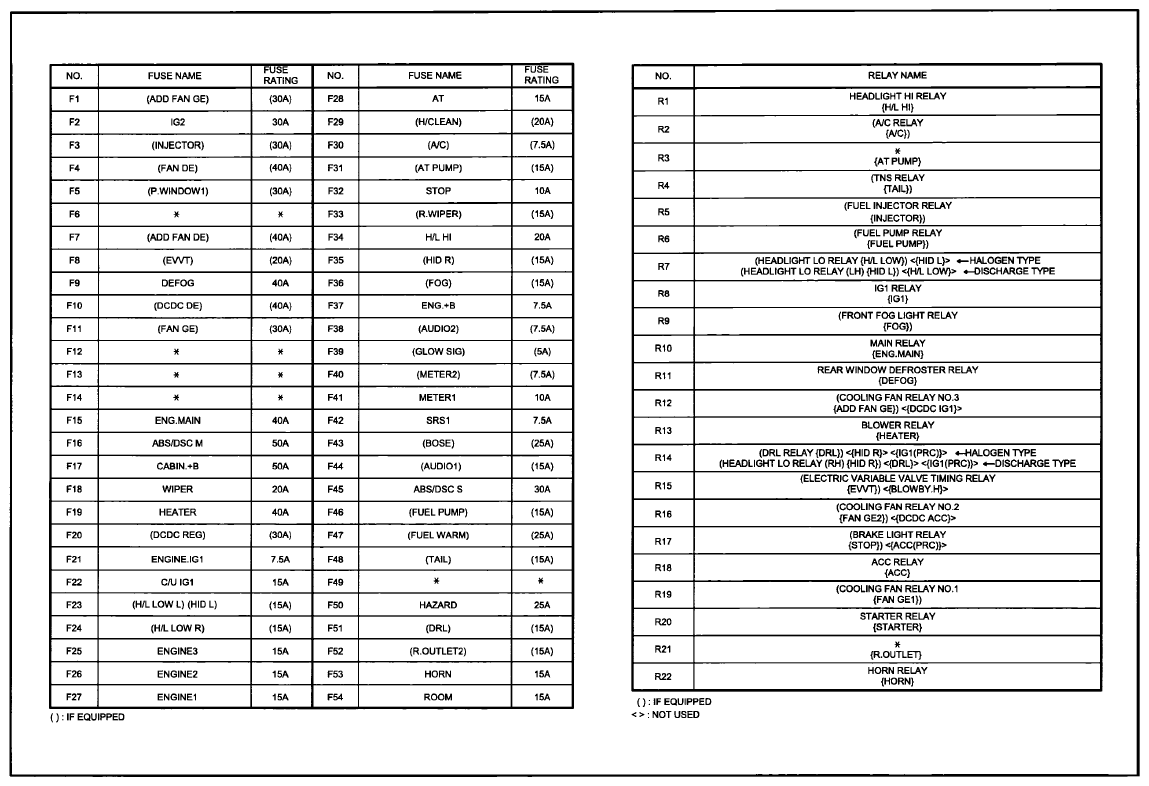

Fig 3: Fuse Box Connector List (00F-2)

Courtesy of MAZDA MOTORS CORP.

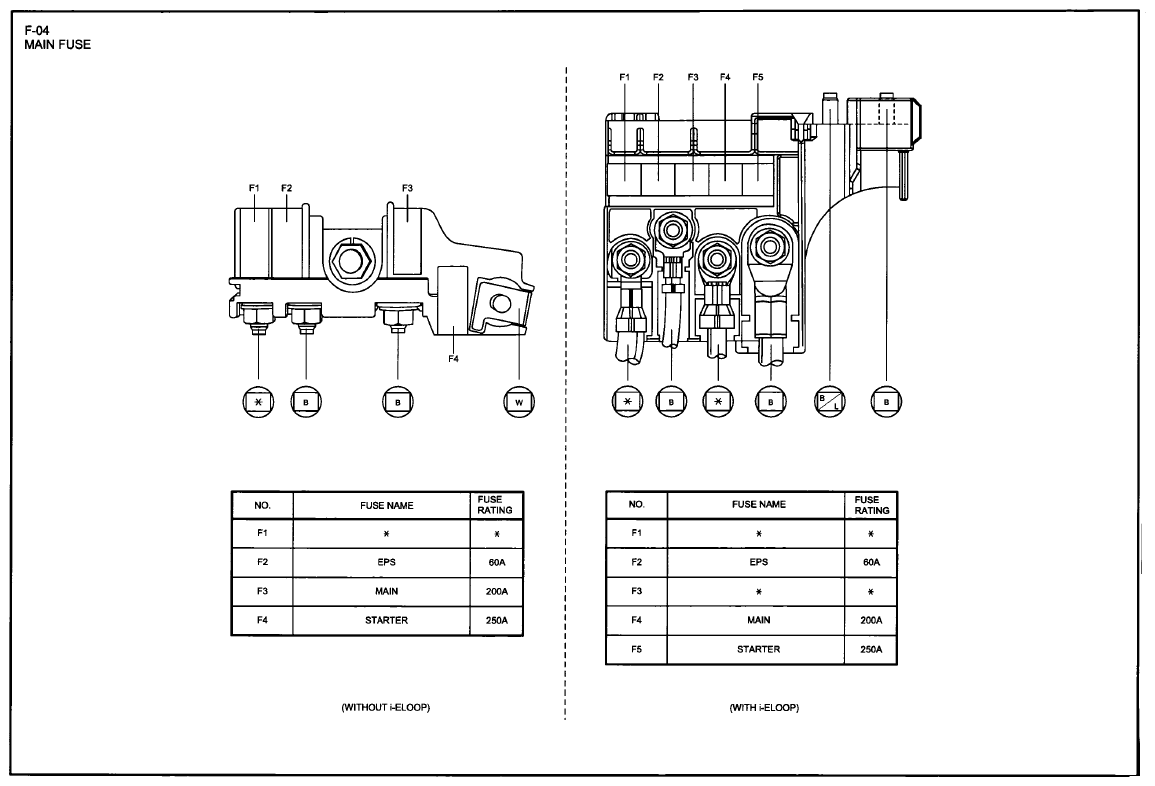

Fig 4: Fuse Box Connector List (00F-4)

Courtesy of MAZDA MOTORS CORP.
