Blower Fan Controller Removal/Installation (Auto A/C)

WARNING: This page is about a different car, the 2014 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
  • When removing the blower fan controller, perform the procedure in the posture shown in the figure.
  1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
  2. Remove the following parts:
    1. Glove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION .)
    2. Dashboard under cover (See DASHBOARD UNDER COVER REMOVAL/INSTALLATION .)
    3. Side wall (passenger-side) (See SIDE WALL REMOVAL/INSTALLATION .)
    4. Front heat duct (passenger-side) (See FRONT HEAT DUCT REMOVAL/INSTALLATION .)
  3. Disconnect the connector.
    Fig 1: Disconnecting Connector
    G09786910Courtesy of MAZDA MOTORS CORP.
  4. Rotate the blower fan controller (2) while pressing the tab (1).
    Fig 2: Rotating Blower Fan Controller While Pressing Tab
    G09786911Courtesy of MAZDA MOTORS CORP.
  5. Remove the blower fan controller.
  6. Install in the reverse order of removal.

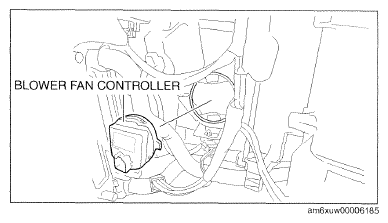

    Fig 3: Locating Blower Fan Controller
    G09786912Courtesy of MAZDA MOTORS CORP.
