DTC U1007; Current Sensor Information Communication Error With Front Body Control Module (FBCM): Notes

DETECTION CONDITION AND POSSIBLE CAUSE

DTC U1007:00	CAN/LIN communication system: current sensor information communication error with front body control module (FBCM)
DETECTION CONDITION	PCM detects a current sensor information communication error from front body control module (FBCM). Diagnostic support note This is a continuous monitor (other). The check engine light does not illuminate. FREEZE FRAME DATA (Mode 2) is not available. Snapshot data is available. DTC is stored in the PCM memory.
FAIL-SAFE FUNCTION	Inhibits a part of the generator output control.

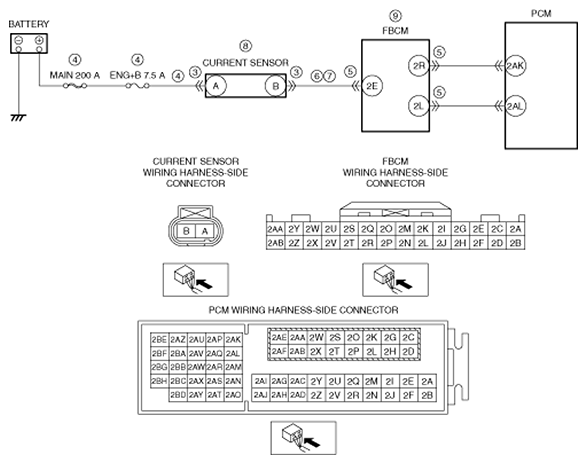

POSSIBLE CAUSE	Communication line between current sensor and front body control module (FBCM) malfunction Communication line between front body control module (FBCM) and PCM malfunction Current sensor connector or terminals malfunction Short to ground or open circuit in current sensor power supply circuit Short to ground in wiring harness between MAIN 200 A fuse and current sensor terminal A MAIN 200 A fuse and/or ENG+B 7.5 A fuse malfunction Open circuit in wiring harness between battery positive terminal and current sensor terminal A Front body control module (FBCM) connector or terminals malfunction Short to ground in wiring harness between current sensor terminal B and front body control module (FBCM) terminal 2E Open circuit in wiring harness between current sensor terminal B and front body control module (FBCM) terminal 2E Current sensor malfunction Front body control module (FBCM) malfunction
