Resistance inspection

1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
2. Remove the front under cover No. 1. (See FRONT UNDER COVER No. 1 REMOVAL/INSTALLATION .)
3. Drain the engine coolant. (See ENGINE COOLANT REPLACEMENT .)
4. Disconnect the ECT sensor No. 2 connector. (See ENGINE COOLANT TEMPERATURE (ECT) SENSOR REMOVAL/INSTALLATION .)
5. Remove the ECT sensor No. 2. (See ENGINE COOLANT TEMPERATURE (ECT) SENSOR REMOVAL/INSTALLATION .)
6. Place the ECT sensor No. 2 in water with a thermometer, and heat the water gradually.

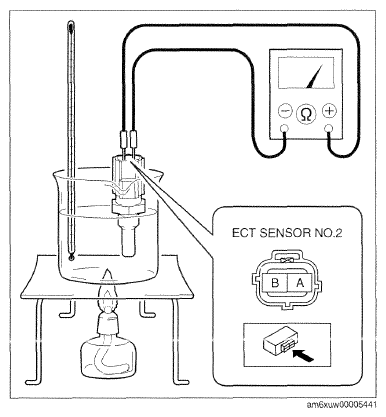

   Fig 1: Measuring Resistance Between ECT Sensor No. 2 Terminals A And B

   Courtesy of MAZDA MOTORS CORP.
7. Measure the resistance between ECT sensor No. 2 terminals A and B.
   • If not as specified, replace the ECT sensor No. 2. (See ENGINE COOLANT TEMPERATURE (ECT) SENSOR REMOVAL/INSTALLATION .)

Specification (Reference)

Fig 2: ECT Sensor No. 2 Resistance Graph

Courtesy of MAZDA MOTORS CORP.
