Starting System Location Index

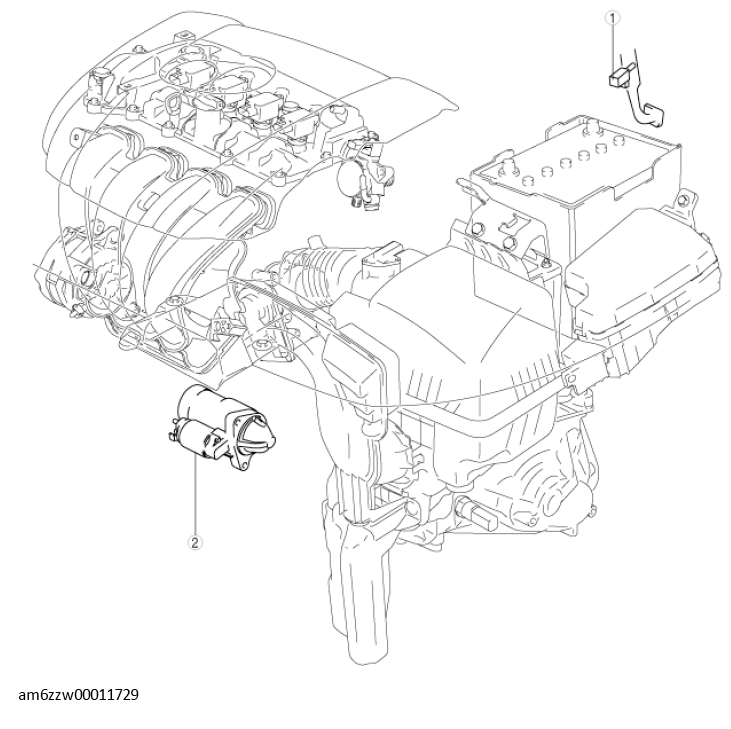

Fig 1: Starting System (Skyactiv-G 2.0, Skyactiv-G 2.5) Components
G11550448Courtesy of MAZDA MOTORS CORP.
COMPONENT DESCRIPTION

1 Starter interlock switch (MTX)
(See STARTER INTERLOCK SWITCH INSPECTION .)
2 Starter
(See STARTER REMOVAL/INSTALLATION .)
(See STARTER INSPECTION .)
(See STARTER DISASSEMBLY/ASSEMBLY .)
