Intake Manifold Removal Note

  1. Disconnect the MAP sensor/IAT sensor No. 2 connector. (See MANIFOLD ABSOLUTE PRESSURE (MAP) SENSOR/INTAKE AIR TEMPERATURE (IAT) SENSOR No. 2 REMOVAL/INSTALLATION .)
  2. Disconnect the harness clip from the intake manifold as shown in the figure.

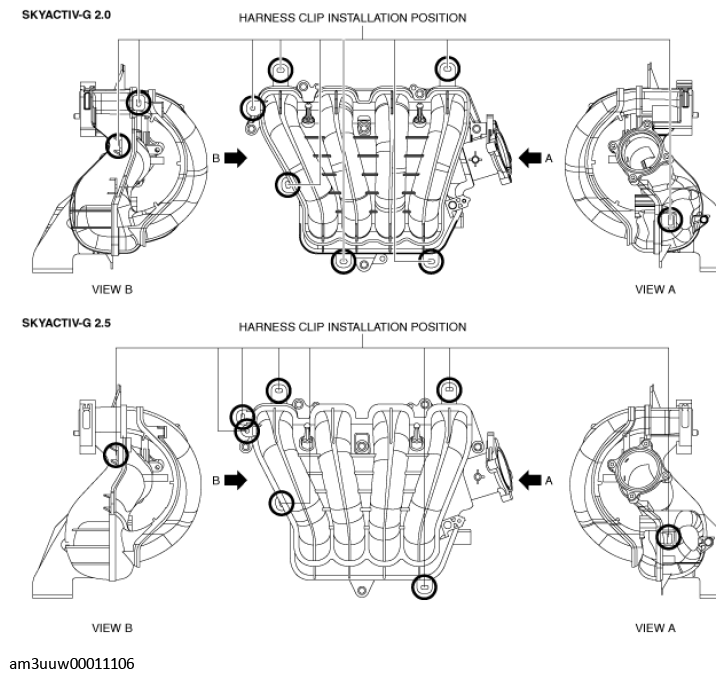

    Fig 1: Disconnecting Harness Clip From Intake Manifold
    G11549861Courtesy of MAZDA MOTORS CORP.
  3. Remove the intake manifold.
