Air Cleaner Case Installation Note

Install the air cleaner case as shown in the figure.

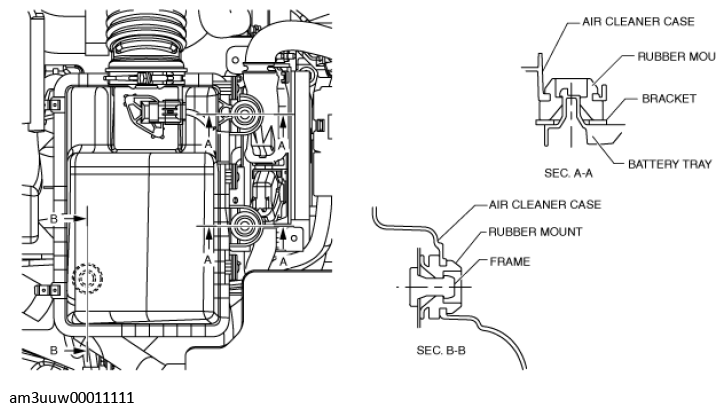

Fig 1: Installing Air Cleaner Case

G11549866

Courtesy of MAZDA MOTORS CORP.
