Idler Removal/Installation: Notes

NOTE:
  • The idler is only installed to vehicles without A/C.
  1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
  2. Remove the front under cover No. 2. (See FRONT UNDER COVER No. 2 REMOVAL/INSTALLATION .)
  3. Remove the drive belt. (See DRIVE BELT REMOVAL/INSTALLATION .)
  4. Remove in the order shown in the figure.

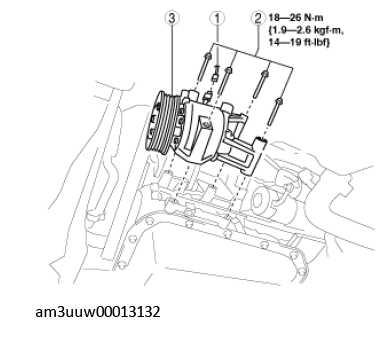

    Fig 1: Removing Idler Pulley Components With Torque Specification
    G11550147Courtesy of MAZDA MOTORS CORP.
    COMPONENT DESCRIPTION

    1 Connector
    2 Idler installation bolt
    3 Idler
    (See Idler Installation Note .)
  5. Install in the reverse order of removal.
