Lubrication System Location Index

SKYACTIV-G 2.0

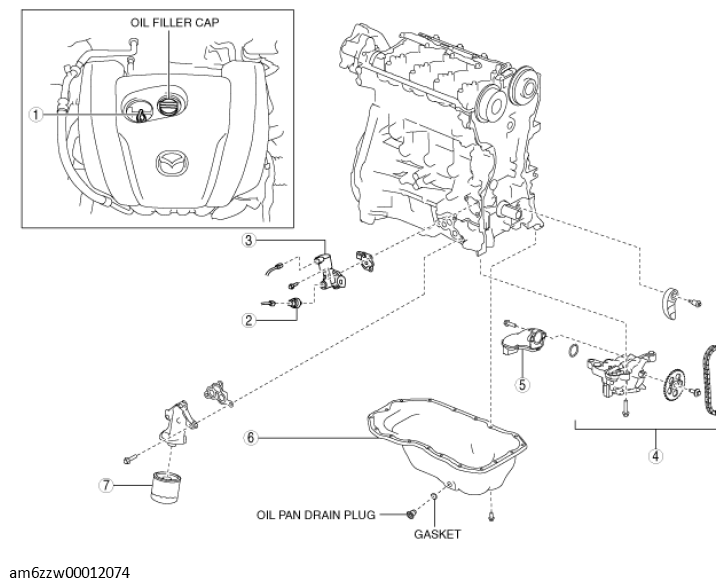

Fig 1: Lubrication System Parts Location - SKYACTIV-G 2.0

Courtesy of MAZDA MOTORS CORP.

SKYACTIV-G 2.5

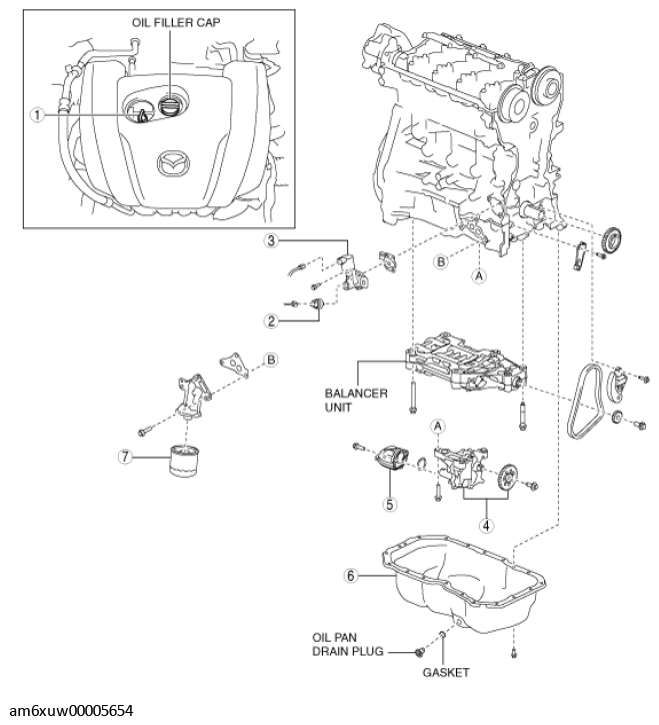

Fig 2: Lubrication System Parts Location - SKYACTIV-G 2.5

Courtesy of MAZDA MOTORS CORP.

COMPONENT DESCRIPTION

1	Dipstick (See ENGINE OIL LEVEL INSPECTION .) (See ENGINE OIL REPLACEMENT .)
2	Oil pressure switch (See OIL PRESSURE INSPECTION .)
3	Engine oil solenoid valve (See ENGINE OIL SOLENOID VALVE REMOVAL/INSTALLATION .) (See ENGINE OIL SOLENOID VALVE INSPECTION .)
4	Oil pump component (See OIL PUMP REMOVAL/INSTALLATION .)
5	Oil strainer (See OIL PUMP REMOVAL/INSTALLATION .)
6	Oil pan (See OIL PAN REMOVAL/INSTALLATION .)
7	Oil filter (See OIL FILTER REPLACEMENT .)
