Replacing Combiner: Notes

  1. Refer to ACTIVE DRIVING DISPLAY INSPECTION and stop the combiner at an angle of 10 degrees. (See ACTIVE DRIVING DISPLAY INSPECTION .)
  2. Switch the ignition off.
  3. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
  4. Remove the following parts:
    1. Upper column cover (See COLUMN COVER REMOVAL/INSTALLATION .)
    2. Meter hood (See METER HOOD REMOVAL/INSTALLATION .)
    3. Instrument cluster (See INSTRUMENT CLUSTER REMOVAL/INSTALLATION .)
  5. Remove the combiner in the following order.

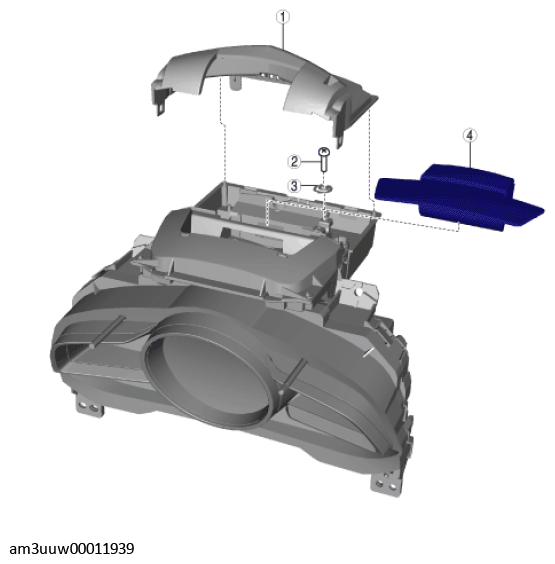

    Fig 1: Removing Combiner
    G11564700Courtesy of MAZDA MOTORS CORP.
    COMPONENT DESCRIPTION

    1 Cover
    2 Screw
    3 Spring
    4 Combiner
    (See Combiner assembly note .)
  6. Install in the reverse order of removal.
