Main Fuse Removal/Installation

  1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5] .)
  2. Insert a tape-wrapped flathead screwdriver into the service hole in the position shown in the figure.

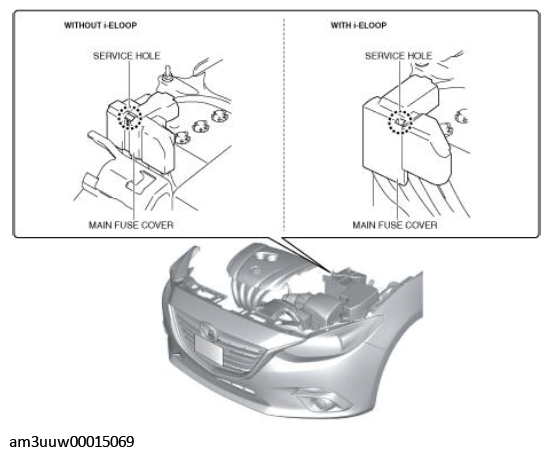

    Fig 1: Inserting Tape-Wrapped Flathead Screwdriver Into Service Hole
    G11467415Courtesy of MAZDA MOTORS CORP.
  3. Move the flathead screwdriver in the direction of the arrow (1) shown in the figure, and pull up the main fuse cover in the direction of the arrow (2) shown in the figure to detach the main fuse cover tab from the main fuse.

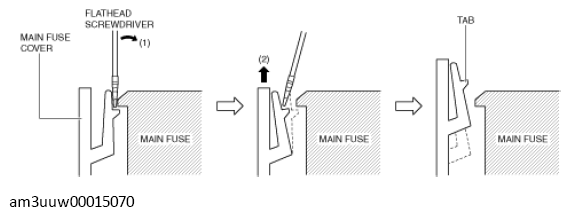

    Fig 2: Detaching Main Fuse Cover Tab From Main Fuse
    G11467416Courtesy of MAZDA MOTORS CORP.
  4. Remove the main fuse cover.
  5. Remove the nuts.

    Without i-ELOOP

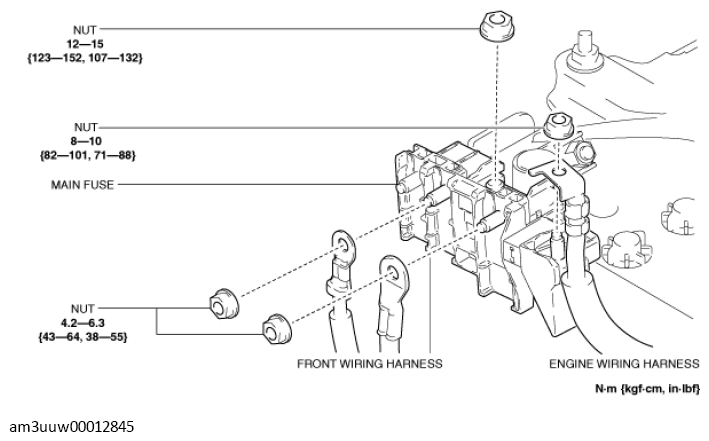

    Fig 3: Engine And Front Wiring Harness Nuts With Torque Specifications - Without I-Eloop
    G11467417Courtesy of MAZDA MOTORS CORP.

    With i-ELOOP

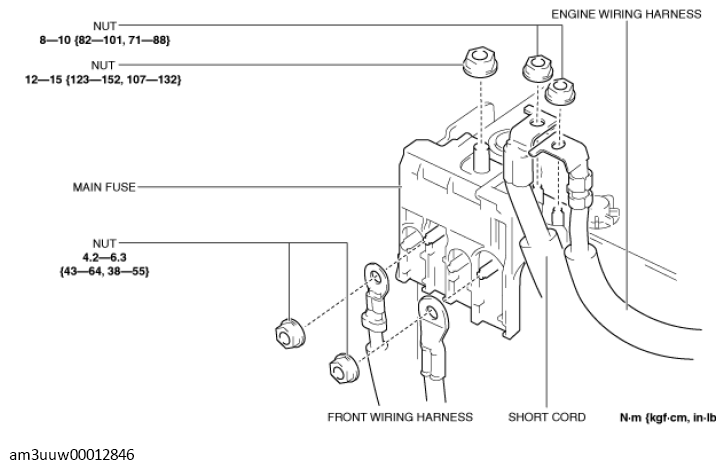

    Fig 4: Engine And Front Wiring Harness Nuts With Torque Specifications - With I-Eloop
    G11467418Courtesy of MAZDA MOTORS CORP.
  6. Remove the main fuse.
  7. Install in the reverse order of removal.
