Center Accessory Socket Removal/Installation

Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5] .)
Remove the console-up. (See REAR CONSOLE REMOVAL/INSTALLATION .)

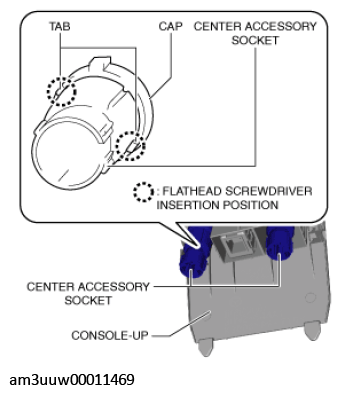

Insert a tape-wrapped flathead screwdriver into the gap between the cap tab and socket.

Fig 1: Inserting Tape-Wrapped Flathead Screwdriver Into Gap Between Cap Tab And Socket
Courtesy of MAZDA MOTORS CORP.

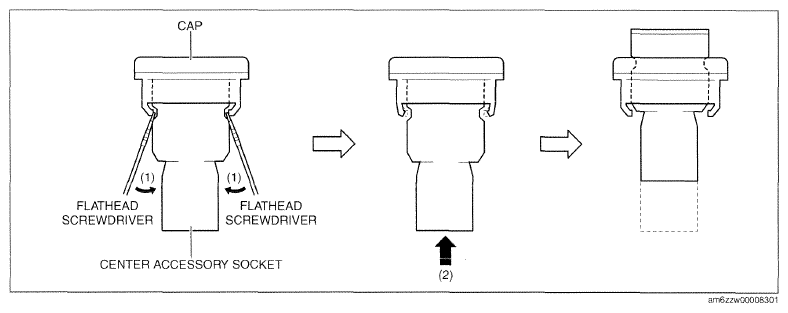

Move the flathead screwdriver in the direction of the arrows (1) shown in the figure, and press the center accessory socket in the direction of the arrow (2) shown in the figure to detach the cap tabs from the socket.

Fig 2: Pressing Center Accessory Socket
Courtesy of MAZDA MOTORS CORP.

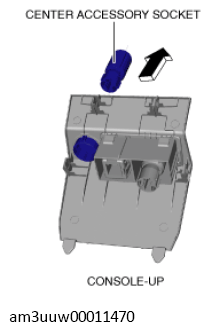

Pull the center accessory socket in the direction of the arrow shown in the figure and remove it.

Fig 3: Removing Center Accessory Socket
Courtesy of MAZDA MOTORS CORP.
While pressing the cap tabs in the direction of arrows (1) shown in the figure, press the cap in the direction of arrow (2) shown in the figure to detach the cap tabs from the console-up.

Fig 4: Detaching Cap Tabs From Console-Up
Courtesy of MAZDA MOTORS CORP.
Remove the cap.
Install in the reverse order of removal.
