Connector Installation Note

  1. Connect the connector and pull the lock lever up in the direction of the arrow.

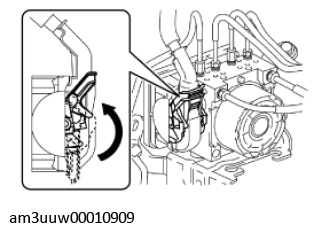

    Fig 1: Pulling Lock Lever Up
    G11453217Courtesy of MAZDA MOTORS CORP.
  2. After connecting the connector, verily that the connector cover is completely pushed in.
