Front Power Window Motor Inspection: Passenger-side

1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
2. Remove the front door trim. (Passenger-side) (See FRONT DOOR TRIM REMOVAL/INSTALLATION .)
3. Disconnect the front power window motor connector.
4. Apply battery positive voltage and connect the ground to front power window motor terminals E and F, and then inspect the front power window motor operation.

B+ Terminal	Ground Terminal	Operation
E	F	Close
F	E	Open

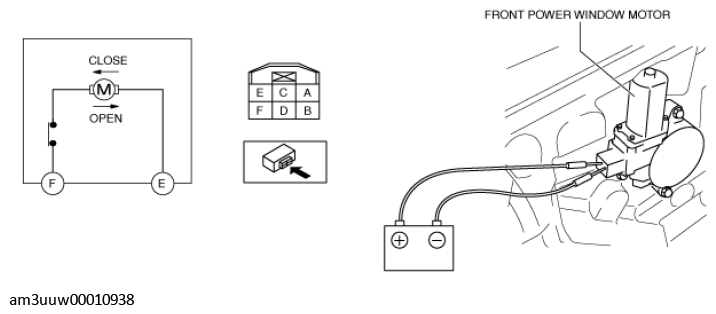

Fig 1: Checking Front Power Window Motor Operation

Courtesy of MAZDA MOTORS CORP.

• If the front power window motor does not operate as indicated in the table, replace it. (See FRONT POWER WINDOW MOTOR REMOVAL/INSTALLATION .)
